TR-D8181IR3 v7 2.8

TR-D8181IR3 v7 2.8

Reservar una demostración Cómo comprar

Especificaciones técnicas

Audio:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 30 m

Digital noise Reduction:

3D DNR

Corridor mode:

Factor de forma:

Esfera

Wi-Fi:

Resolución máxima de salida de video:

3840x2160

Sensor de imagen:

1/2.7" CMOS

Bitrate (Mb/sec):

up to 16Mbps

Fuente de alimentación:

PoE (802.3af) / 12V DC

Lente (mm):

2.8

Peso Neto:

0.370 / 0.450

Sensibilidad (Lux):

0.006Lux (F1.6)

Almacenamiento local:

MicroSD up to 512GB

Protección de ingreso:

IP67

IR:

Yes

Case material:

Metal

Protección contra rayos:

TVS 2000V

Power PoE:

Dimensiones:

Ø103.5 x 82.4

El consumo de energía:

DC: 4W PoE: 5W

Temperatura de trabajo:

-40°C … +60°C

Modo Día/Noche:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Descripción

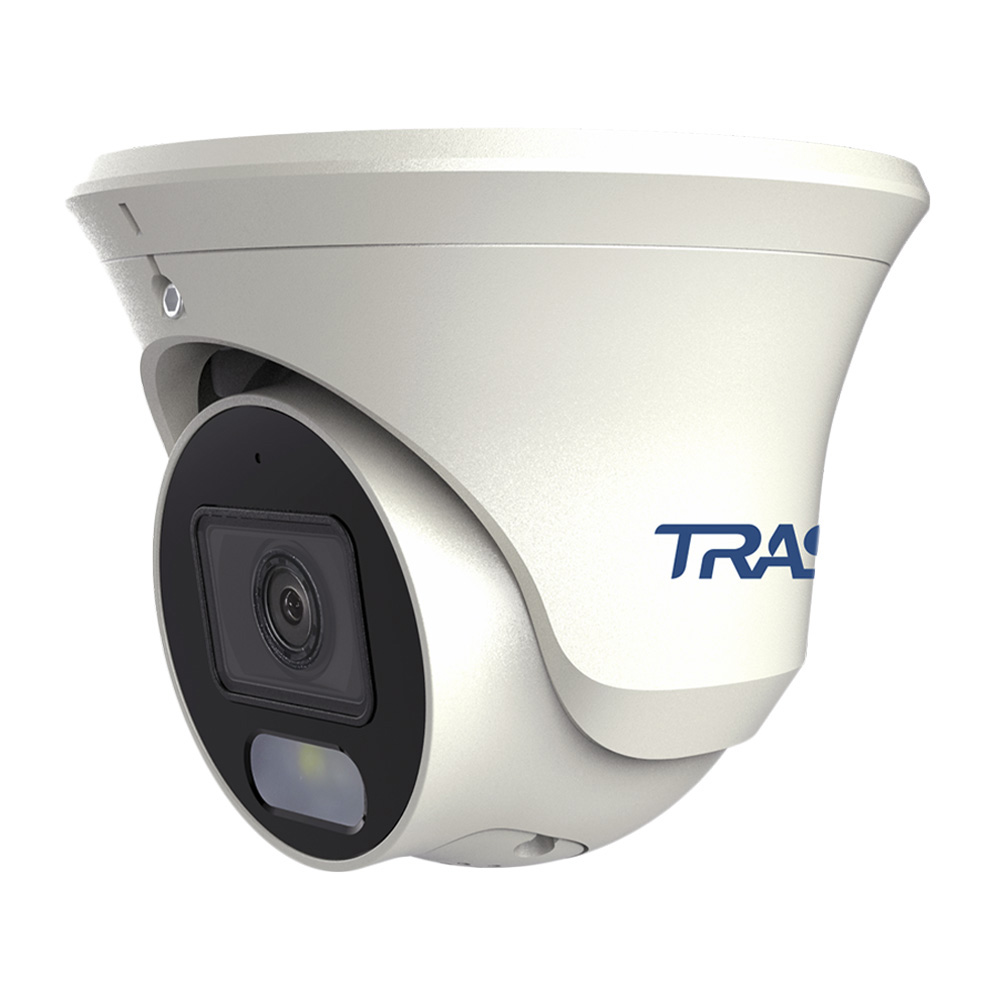

TRASSIR TR-D8181IR3 v7 (2.8 mm)

TRASSIR TR-D8181IR3 v7 2.8 is an outdoor spherical camera designed for 24/7 surveillance. Equipped with a 1/2.7" CMOS sensor, the camera delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). The camera features a 2.8 mm fixed-focal-length lens. 120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 30 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.

The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.

The camera's metal housing, IP67 protection rating, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.

Documentación

TR-D8181IR3 v7 2.8.pdf
