TR-D2123ZIR6 v7 2.7–13.5

TR-D2123ZIR6 v7 2.7–13.5

Reservar una demostración Cómo comprar

Especificaciones técnicas

Audio:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Factor de forma:

Bala

Wi-Fi:

Resolución máxima de salida de video:

1920x1080

Sensor de imagen:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Fuente de alimentación:

PoE (802.3af) / 12V DC

Lente (mm):

2.7 - 13.5 (motorzoom)

Peso Neto:

0.635 / 0.830

Sensibilidad (Lux):

0.005Lux (F1.6)

Almacenamiento local:

MicroSD up to 256GB

Protección de ingreso:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Protección contra rayos:

TVS 4000V

Power PoE:

10.9W

Dimensiones:

234.3 x 77.5 x 75.3

El consumo de energía:

DC: 9.8W PoE: 10.9W

Temperatura de trabajo:

-40°C … +60°C

Modo Día/Noche:

Mechanic IR-filter

Field of view:

H102°-34°±5°, V54°-20°±5°

Video compression:

Н.265+ / Н.265 / H.264

Descripción

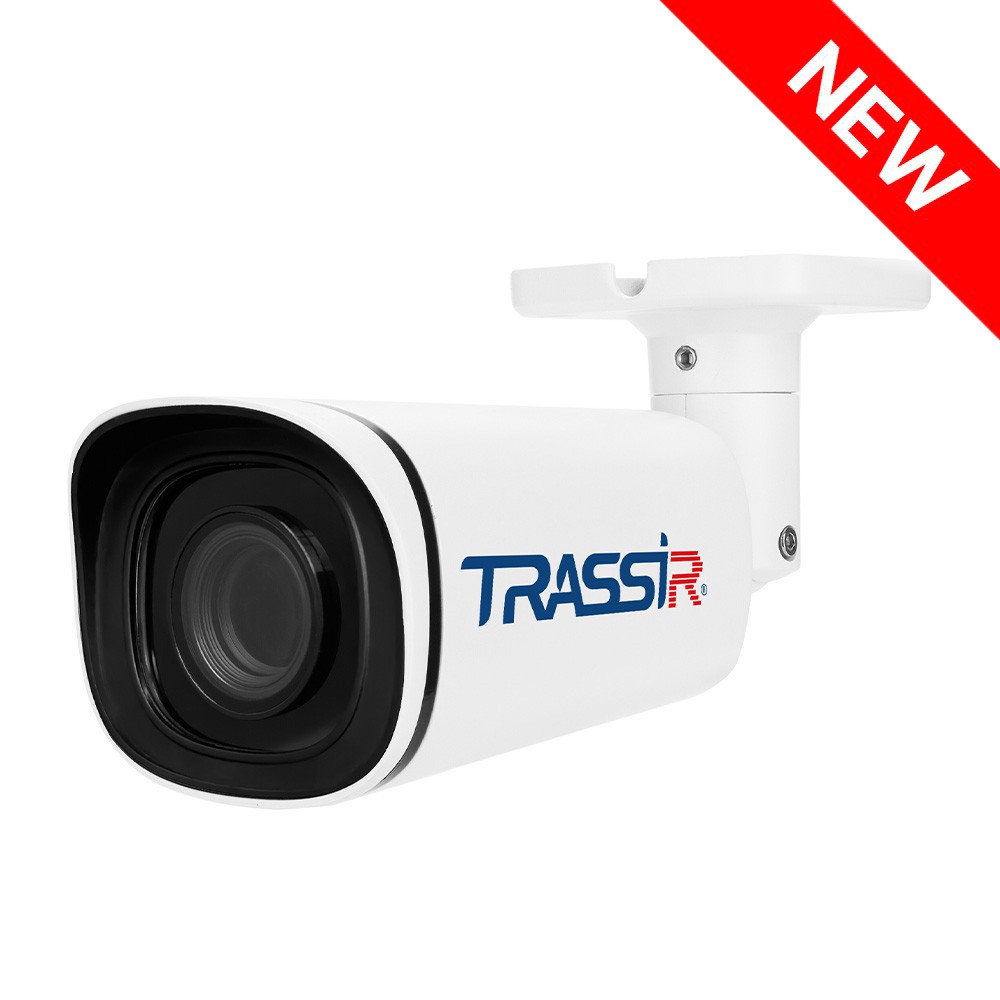

TRASSIR TR-D2123ZIR6 v7 (2.7–13.5 mm)

The TRASSIR TR-D2123ZIR6 v7 2.7–13.5 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, ensuring reliable performance throughout the year, day or night. Its robust metal housing is rated IP67 for protection against dust and moisture and IK08 for resistance to mechanical impacts. The camera operates in extreme temperatures ranging from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 60 meters.

Parameters:

Detection capabilities: people, vehicles, line crossing, area entry and exit
Real WDR 120 dB – enhances image quality under high-contrast lighting
3D DNR – spatial noise reduction for improved low-light performance
Corridor mode – optimized for vertically oriented scenes
1/2.8" CMOS sensor with 0.005 lx minimum illumination
Vari-focal lens (2.7–13.5 mm) with horizontal viewing angle from 102° to 34°, vertical angle from 54° to 20°, and F/1.6 aperture
Mechanical IR cut filter – blocks infrared light under sufficient ambient lighting
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 9.8 W
Dimensions: Ø234.3 × 77.5 × 75.3 mm
Weight: 635 g
