TR-D8251WDIR3 v3 1.9
Audio:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/12 500 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolución de cámaras (max):
2592x1920Factor de forma:
EsferaWi-Fi:
-Sensor de imagen:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsFuente de alimentación:
PoE (802.3af) / 12V DCLente (mm):
1.9Peso Neto:
0.40 / 0.49Sensibilidad (Lux):
0.003Lux (F2.6)Almacenamiento local:
MicroSD up to 512GBProtección de ingreso:
IP66, IK10IR:
YesCase material:
MetalProtección contra rayos:
TVS 4000VPower PoE:
5.1WDimensiones:
Ø93 x 92.2El consumo de energía:
DC: 3.0W PoE: 5.1WTemperatura de trabajo:
-40°C … +60°CModo Día/Noche:
Mechanic IR-filterField of view:
H110°±5°, V80°±5°Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264

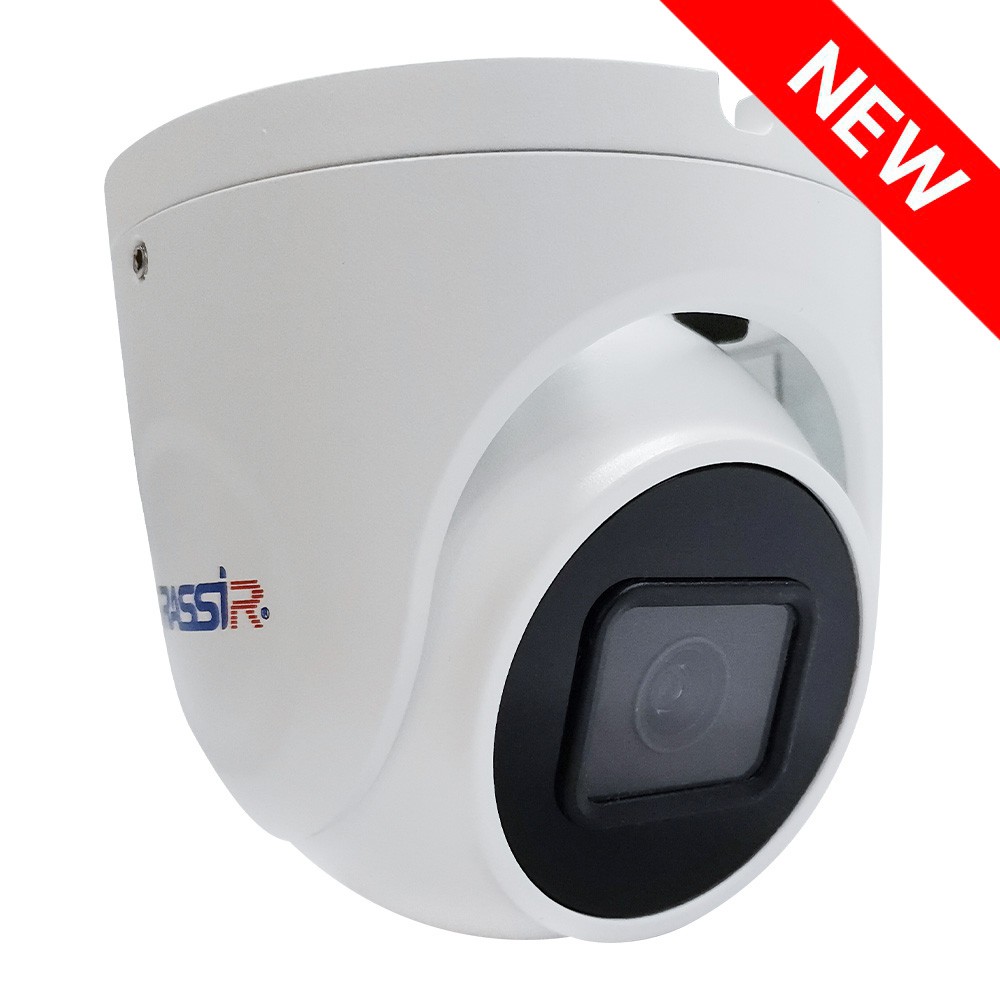

TRASSIR TR-D8251WDIR3 v3 1.9 5 MP (2592×1920) IP Camera is designed for outdoor use in all seasons. Its housing provides protection against dust and moisture (IP66), resists mechanical impacts (IK10), operates in extreme temperatures (-40 °C to +60 °C), includes lightning protection (TVS 4000), and features integrated IR illumination with a range of up to 30 m.
Functionality:
- Face detection, motion detection, people detection, line crossing, area intrusion, loitering, vehicle detection, people counting
- WDR 120 dB: Reduces the impact of high-contrast lighting on image quality
- 3D DNR: Spatial noise reduction
- Corridor mode: Captures vertically oriented scenes
- Defog: Enhances contrast to minimize the effects of fog and smoke
- BLC: Backlight compensation
- IR illumination: Up to 30 m
- Video compression: H.265+, H.265, H.264
- Main stream: 25–30 fps at 2592×1920 resolution
Main specifications:
- 1/2.8-inch CMOS sensor with 0.003 lux sensitivity
- Day/night mode with ICR: blocks IR rays in sufficient light for optimized color reproduction; mechanically shifts in darkness to increase sensitivity
- Bitrate: 8 Mbps
- Fixed lens: 1.9 mm focal length, horizontal FOV 110° ±5°, vertical FOV 80° ±5°, aperture F/2.6
- RJ-45 network port, built-in microphone
- MicroSD slot supporting up to 512 GB
- Power: DC 12 V, PoE
- Maximum power consumption: 5.1 W
- Dimensions: Ø93 × 92.2 mm
- Weight: 400 g
TR-D8251WDIR3 v3 1.9.pdf
