TR-D8123ZIR4 v7 2.7–13.5

TR-D8123ZIR4 v7 2.7–13.5

Reservar una demostración Cómo comprar

Especificaciones técnicas

Audio:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Factor de forma:

Esfera

Wi-Fi:

Resolución máxima de salida de video:

1920x1080

Sensor de imagen:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Fuente de alimentación:

PoE (802.3af) / 12V DC

Lente (mm):

2.7 - 13.5 (motorzoom)

Peso Neto:

0.40 / 0.49

Sensibilidad (Lux):

0.005Lux (F1.6)

Almacenamiento local:

MicroSD up to 256GB

Protección de ingreso:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Protección contra rayos:

TVS 4000V

Power PoE:

11.1W

Dimensiones:

Ø120 x 110.8

El consumo de energía:

DC: 10.0W PoE: 11.1W

Temperatura de trabajo:

-40°C … +60°C

Modo Día/Noche:

Mechanic IR-filter

Field of view:

H102°-34°±5°, V54°-20°±5°

Video compression:

Н.265+ / Н.265 / H.264

Descripción

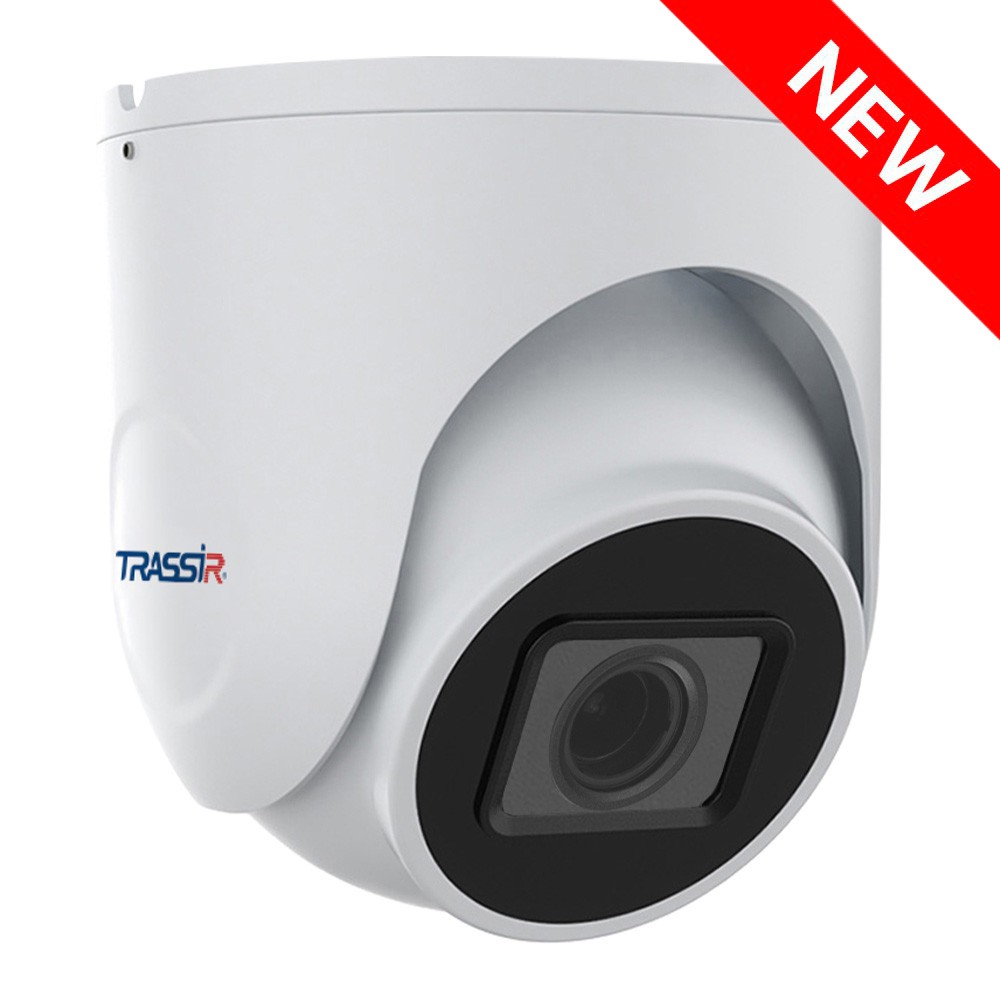

TRASSIR TR-D8123ZIR4 v7 (2.7–13.5 mm)

The 2 MP (1920×1080) IP camera TRASSIR TR-D8123ZIR4 v7 2.7–13.5 is designed for outdoor use in areas with direct access and operates reliably year-round, day or night. Its metal housing is protected against moisture and dust (IP66) and resists mechanical impacts (IK10). The operating temperature range is –40 °C to +60 °C. It features lightning protection rated at TVS 4000 V and an integrated IR illumination range of up to 40 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry/exit
Real WDR 120 dB – reduces the impact of high-contrast lighting on image quality
3D DNR – spatial noise reduction
Corridor mode – optimized for vertically oriented image capture
1/2.8" CMOS sensor with 0.005 lx sensitivity
Motorized lens (2.7–13.5 mm) with a horizontal viewing angle of 102°–34°, vertical angle of 54°–20°, and an aperture of F/1.6
Mechanical IR filter blocks infrared rays when there is sufficient light
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V, PoE. Maximum power consumption: 10.0 W
Dimensions: Ø120 × 110.8 mm
Weight: 400 g
