TR-D7121IR1 v7 1.9
Audio:
built-in microphone / built-in speakerWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 10 mDigital noise Reduction:
3D DNRCorridor mode:
YesFactor de forma:
CuboWi-Fi:
-Resolución máxima de salida de video:
1920x1080Sensor de imagen:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsFuente de alimentación:
PoE (802.3af) / 12V DCLente (mm):
1.9Peso Neto:
0.095 / 0.220Sensibilidad (Lux):
0.005Lux (F1.6)Almacenamiento local:
MicroSD up to 256GBIR:
YesCase material:
PlasticVideo input:
NoProtección contra rayos:
NoPower PoE:
2.9WDimensiones:
129 x 99 x 60El consumo de energía:
DC: 2.0W PoE: 2.9WTemperatura de trabajo:
-10°C … +50°CModo Día/Noche:
Mechanic IR-filterField of view:
H139°±5°, V74°±5°Video compression:
Н.265+ / Н.265 / H.264

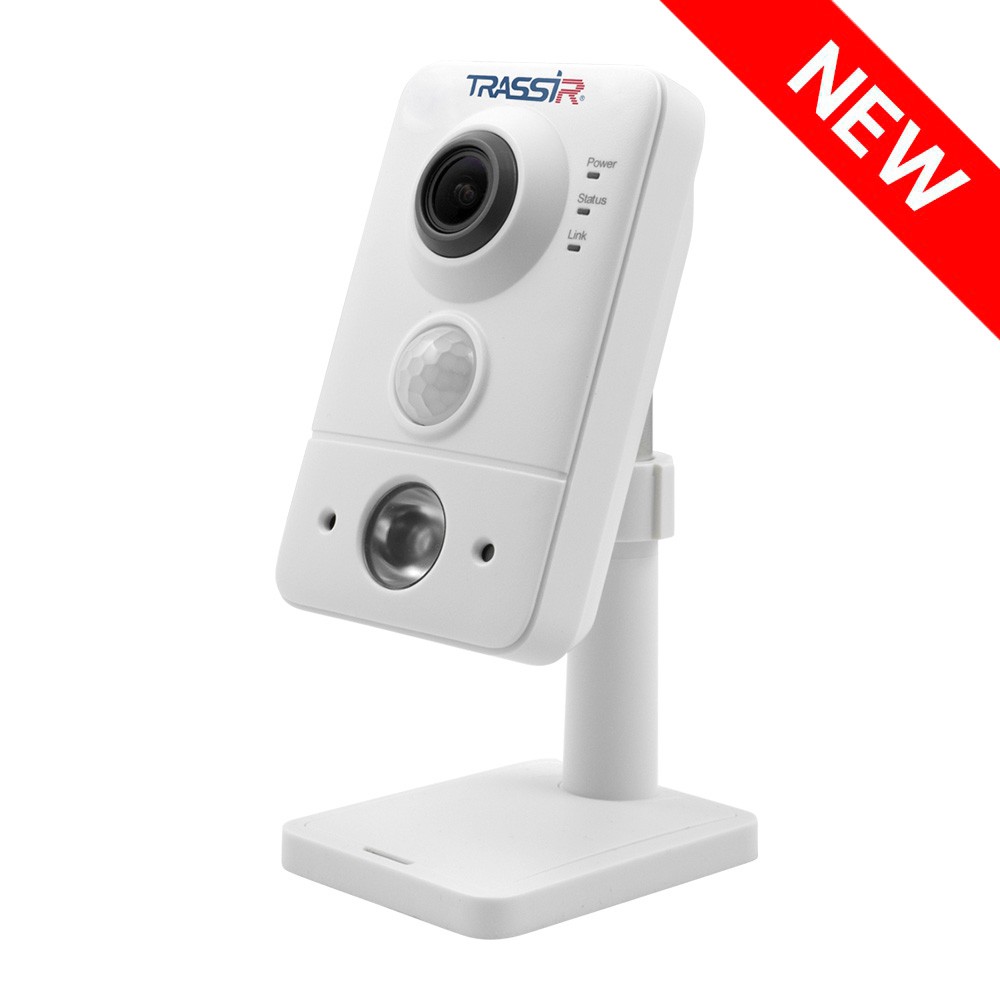

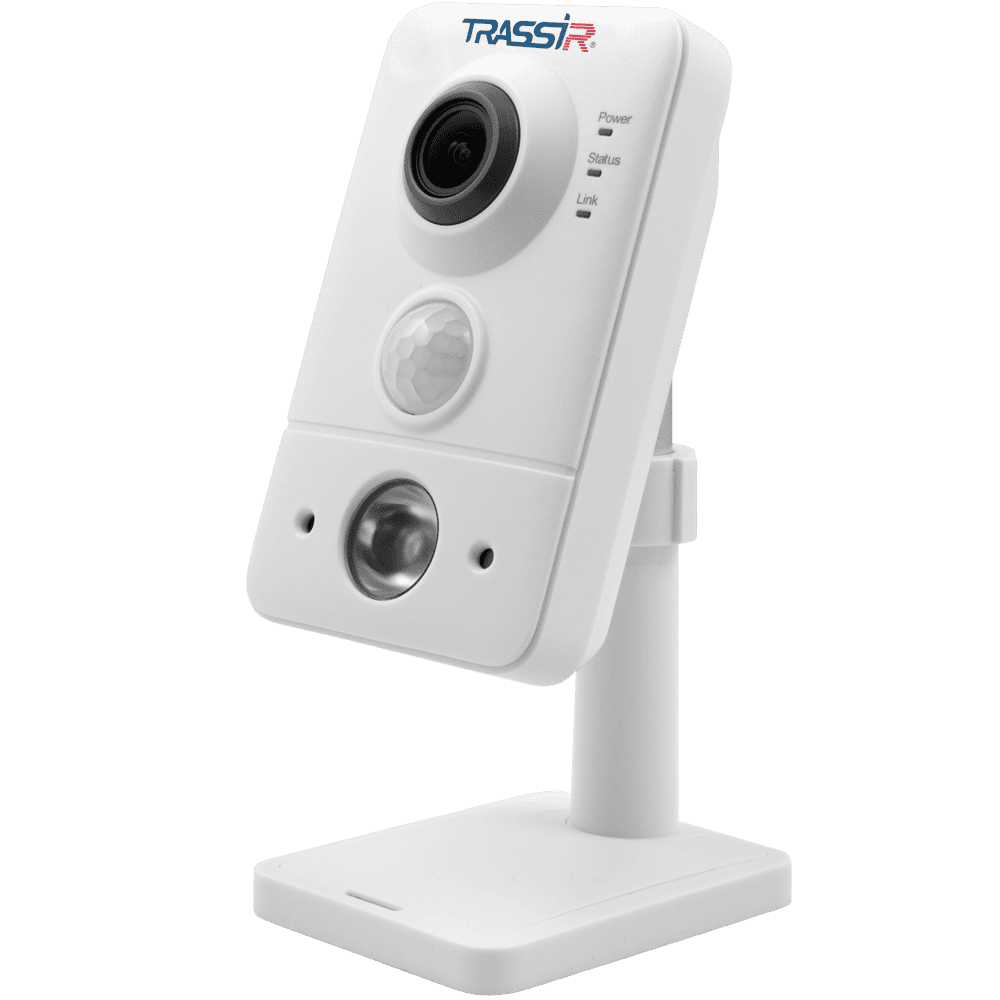

The TRASSIR TR-D7121IR1 v7 1.9 is a compact indoor 2 MP (1920×1080) IP camera designed for efficient video surveillance and two-way audio communication. It features IR illumination with a 10-meter range for night monitoring, a built-in microphone and speaker for two-way audio, and a PIR sensor for motion detection via thermal changes. The camera supports advanced analytics, including human motion detection, virtual line crossing, and zone intrusion detection.
Parameters:
- Detection of people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – improves image quality under high dynamic range lighting
- 3D DNR – spatial noise reduction for better clarity in low-light conditions
- Corridor mode – optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Mechanical IR cut filter – blocks infrared light when ambient light is sufficient
- Video compression: H.265+, H.265, H.264
- Built-in microphone and speaker for two-way communication
- PIR sensor for thermal motion detection
- SD card slot supporting up to 256 GB
- Fixed 1.9 mm lens
- Horizontal viewing angle: 139°
- Vertical viewing angle: 74°
- Aperture: F/1.6
- Interfaces: RJ-45 network port, microSD slot (up to 256 GB), power connector
- Power supply: 12 V DC or PoE
- Maximum power consumption: 2 W
- Dimensions: 129 × 99 × 60 mm
- Weight: 95 g
- Operating temperature range: –10 °C to +50 °C
TR-D7121IR1 v7 1.9.pdf
