TR-D4121IR1 v7 2.8
Audio:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 15 mDigital noise Reduction:
3D DNRCorridor mode:
YesFactor de forma:
DomoWi-Fi:
-Resolución máxima de salida de video:
1920x1080Sensor de imagen:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsFuente de alimentación:
PoE (802.3af) / 12V DCLente (mm):
2.8Peso Neto:
0.31 / 0.40Sensibilidad (Lux):
0.005Lux (F1.6)Almacenamiento local:
MicroSD up to 256GBProtección de ingreso:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoProtección contra rayos:
TVS 4000VPower PoE:
3.6WDimensiones:
Ø102.20 x 56.38El consumo de energía:
DC: 3.0W PoE: 3.6WTemperatura de trabajo:
-40°C … +60°CModo Día/Noche:
Mechanic IR-filterField of view:
H110°±5°, V60°±5°Video compression:
Н.265+ / Н.265 / H.264

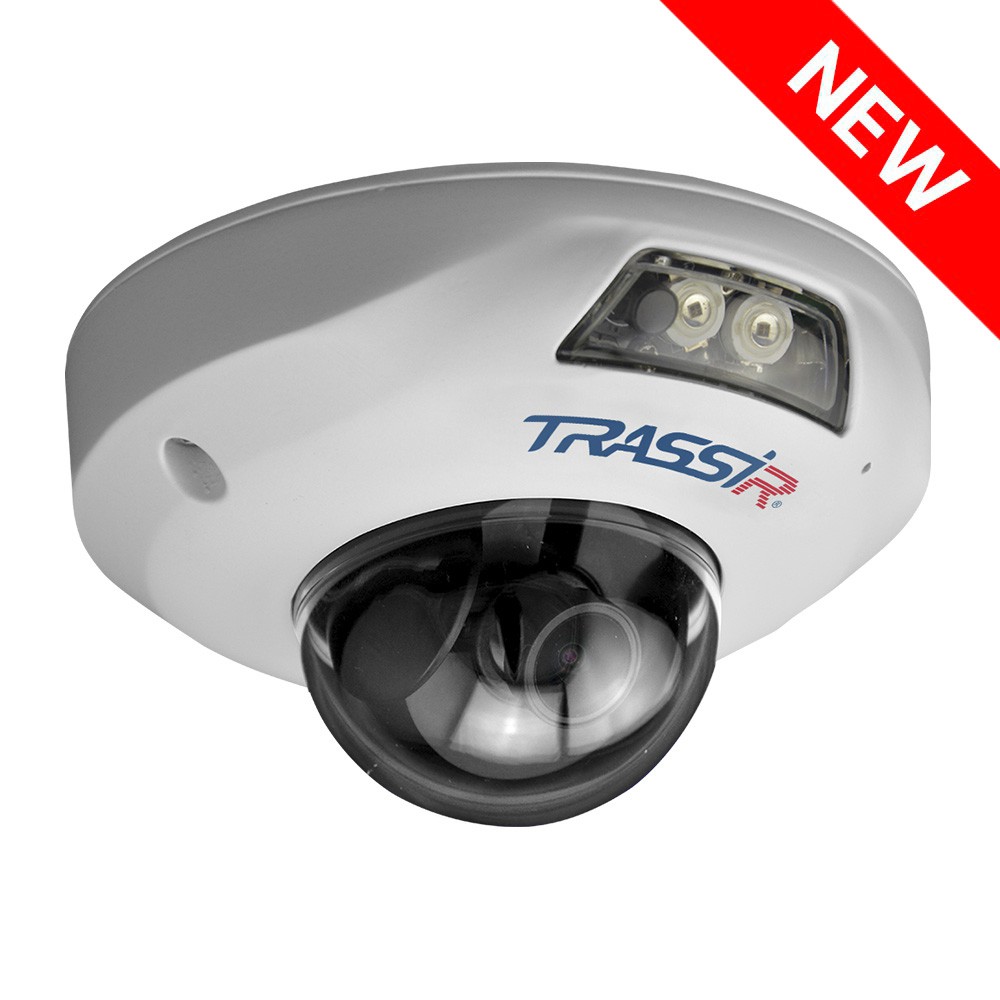

The TRASSIR TR-D4121IR1 v7 2.8 is a 2 MP (1920×1080) IP camera designed for outdoor installation in areas with direct public access, ensuring reliable performance year-round, day or night. The metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera operates in a temperature range of –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 15 meters.
Parameters:
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – improves image quality in scenes with high dynamic range
- 3D DNR – spatial noise reduction for enhanced low-light performance
- Corridor mode – optimized for vertically oriented video capture
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 2.8 mm lens with 110° horizontal and 60° vertical viewing angles, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light when ambient lighting is sufficient
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.0 W
- Dimensions: Ø102.20 × 56.38 mm
- Weight: 310 g
TR-D4121IR1 v7 2.8.pdf
