TR-D3183ZIR5 v7 2.7-13.5

TR-D3183ZIR5 v7 2.7-13.5

Reservar una demostración Cómo comprar

Especificaciones técnicas

Audio:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 50 m

Digital noise Reduction:

3D DNR

Corridor mode:

Factor de forma:

Domo

Wi-Fi:

Resolución máxima de salida de video:

3840x2160

Sensor de imagen:

1/2.7" CMOS

Bitrate (Mb/sec):

up to 16Mbps

Fuente de alimentación:

PoE (802.3af) / 12V DC

Lente (mm):

2.7 - 13.5

Peso Neto:

0.820 / 1.020

Sensibilidad (Lux):

0.006Lux (F1.6)

Almacenamiento local:

MicroSD up to 512GB

Protección de ingreso:

IP67

IR:

Yes

Case material:

Metal

Protección contra rayos:

TVS 2000V

Power PoE:

8.3W

Dimensiones:

Ø142.2 x 116.5

El consumo de energía:

DC: 7W PoE: 8.3W

Temperatura de trabajo:

-40°C … +60°C

Modo Día/Noche:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Descripción

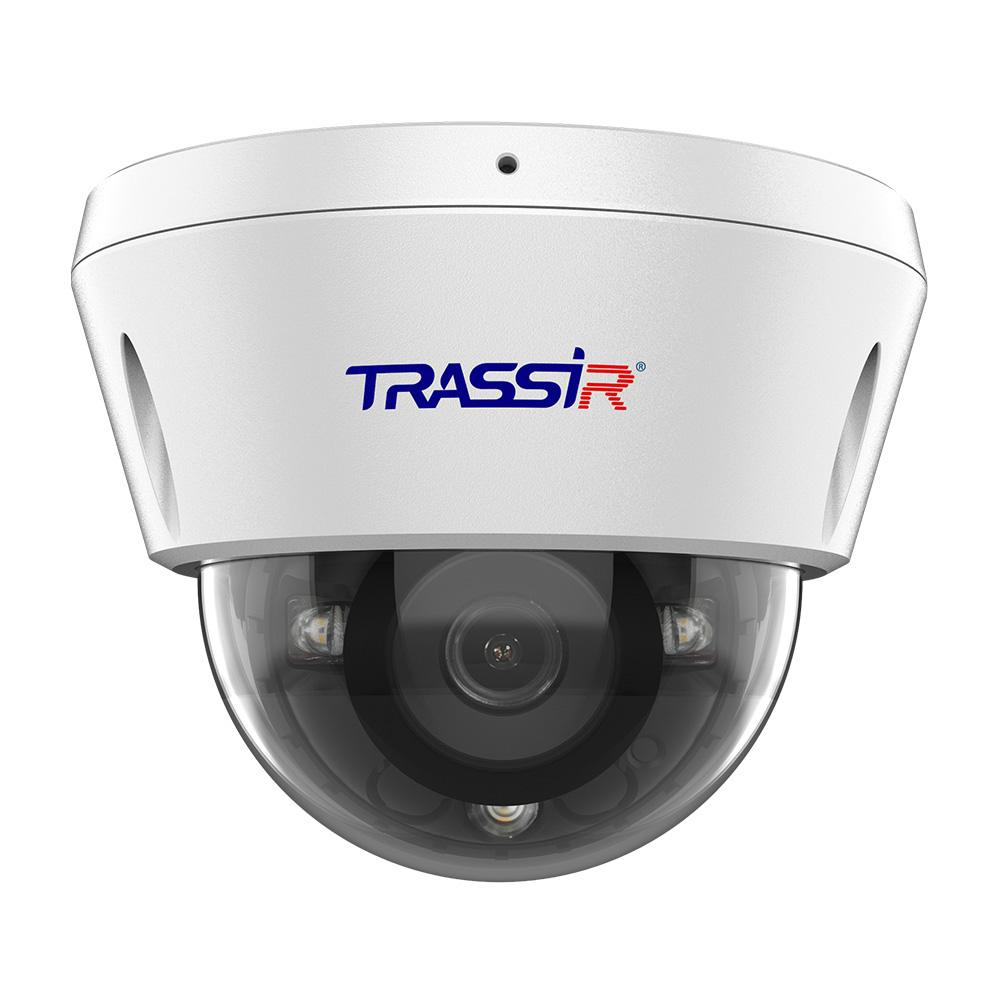

TRASSIR TR-D3183ZIR5 v7 (2.7–13.5 mm)

TRASSIR TR-D3183ZIR5 v7 2.7–13.5 is a dome camera with a motorized lens designed for 24/7 outdoor video surveillance. Equipped with a 1/2.7" CMOS sensor, the camera delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). The 2.7–13.5 mm motorized varifocal lens allows the focal length and focus to be adjusted to suit the desired viewing distance and monitoring area.

120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 50 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.

The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.

The camera's metal enclosure, IP67 and IK10 protection ratings, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.

Documentación

TR-D3183ZIR5 v7 2.7-13.5.pdf
