TR-D2221WDIR4 v3 3.6

Reservar una demostración Cómo comprar

Especificaciones técnicas

Audio:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolución de cámaras (max):

1920x1080

Factor de forma:

Bala

Wi-Fi:

Resolución máxima de salida de video:

1920x1080

Sensor de imagen:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Fuente de alimentación:

PoE (802.3af) / 12V DC

Lente (mm):

3.6

Peso Neto:

0.460 / 0.565

Sensibilidad (Lux):

0.003Lux (F1.8)

Almacenamiento local:

MicroSD up to 512GB

Protección de ingreso:

IP67

IR:

Yes

Case material:

Metal

Protección contra rayos:

TVS 4000V

Power PoE:

5.0W

Dimensiones:

184.7 x 66.5 x 63.05

El consumo de energía:

DC: 4.0W PoE: 5.0W

Temperatura de trabajo:

-40°C … +60°C

Modo Día/Noche:

Mechanic IR-filter

Field of view:

H87°±5°, V48°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Descripción

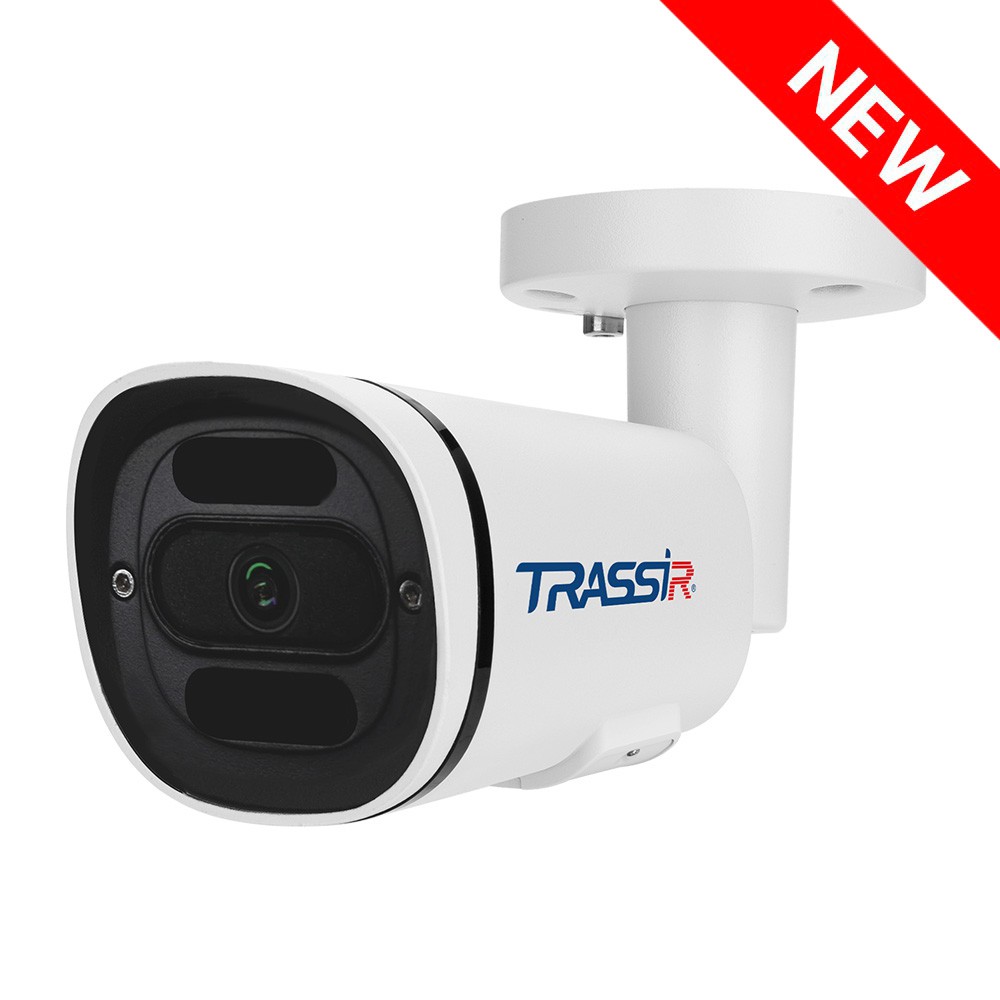

TRASSIR TR-D2221WDIR4 v3 (3.6 mm)

2 MP (1920×1080) IP Camera TRASSIR TR-D2221WDIR4 v3 3.6 Designed for year-round outdoor use, featuring housing protected from moisture and dust (IP67), with an operating temperature range of -40 °C to +60 °C, TVS 4000 lightning protection, and integrated IR illumination with a range of 40 meters.

Functionality:

Face detection, motion detection, people detection, line crossing, area intrusion, loitering detection, vehicle detection, people counting
Real WDR 120 dB – reduces the impact of high-contrast lighting on image quality
3D DNR – spatial noise reduction
Corridor mode – vertically oriented shooting
Defog – increases contrast to reduce the effects of fog and smoke
BLC – backlight compensation
IR illumination with a range of 40 meters
Compression: H.265+, H.265, H.264
Main stream: 25–30 fps at 1920×1080, 1280×960, 1280×720
Sub stream: 25–30 fps at 1280×720, 720×576, 640×480
Third stream: 25–30 fps at 720×576, 640×480, 640×240

Specifications:

The TR-D2221WDIR4 v3 3.6 is built on a 1/2.8-inch CMOS sensor with a sensitivity of 0.003 lux. Supports day/night mode with ICR: in sufficient light, the filter blocks IR rays for optimal color reproduction, while in low light it mechanically shifts away from the sensor to increase sensitivity.

Bitrate: up to 8 Mbps
Fixed lens: focal length 3.6 mm; horizontal viewing angle 87° ± 5°; vertical viewing angle 48° ± 5°; aperture F/1.8
Built-in microphone for audio monitoring
RJ-45 network port and microSD slot supporting up to 512 GB
Power supply: DC 12 V, PoE
Maximum power consumption: 5.0 W
Dimensions: 184.7 × 66.5 × 63.05 mm
Weight: 460 g
